Ada Color

Product Features

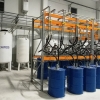

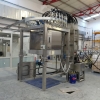

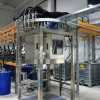

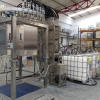

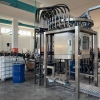

Ada Color Carmine model is a fully automatic dispensing system designed for high capacity productions ranging from bucket size to IBC or mobile boilers.

It has the feature of being used with full circulation multi-stage valves in different sizes and capacities up to a maximum of 36 components.

By using Adasoft software, the system can produce unlimited color demands with perfect accuracy in a few simple steps.

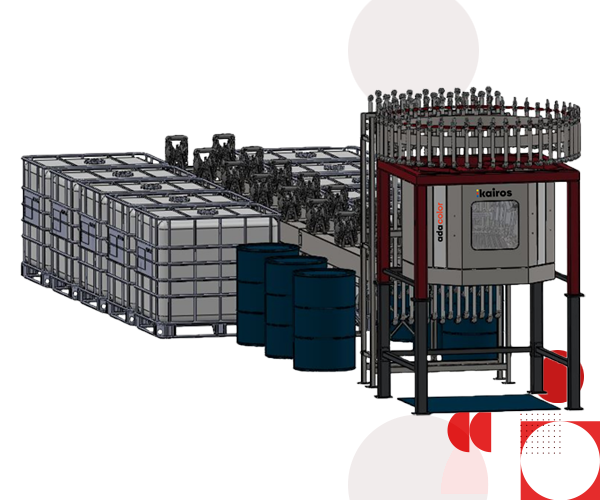

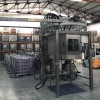

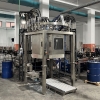

Ada Color Carmine can be produced in different layouts according to the current production area. Components can be connected to the system in 200 lt drums, IBCs or tanks of different volumes and sizes.

Ada Color Carmine model dispensing system is produced for water and solvent-based products. Our ex-proof solvent-based systems have Atex system certificate.

Technicial Specifications

Maximum 36 components

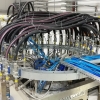

2 stage stainless steel DN 15 , DN 25 dispensing valves
Diaphragm pump and stainless steel dampners
30kg ±1g ,300kg ±10g, 1500kg ±50g electronic scale options
Wet system automatic valve cleaning
Manual control buttons
Modular body

Operational Features

Working viscosity max 1500 cPoise
Dosing accuracy up to ±1g
Dosing speed;
Less than three minutes for 20 kg and 4 components
Less than ten minutes for 200 kg and 4 components
Less than thirty minutes for 1000 kg and 4 components

Software

Formulation database
Product Registrations
Stock control
Return Usage
Calibration settings
Backup
Cost Tracking
Reports

Options

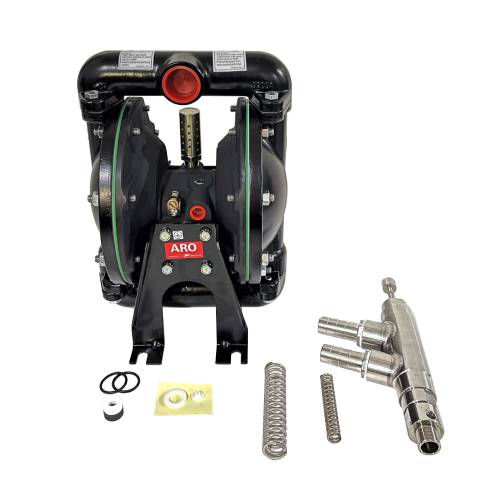

Repair kit

Dispensing valve
Diaphragm pump
Valve repair kit
Washing hose

Semi-Automatic Bucket Mixer

Semi-automatic mixer with air motor. 0.68 kW
Pneumatic up and down movement.
Adjustable mixing speed.
Stainless steel rollers

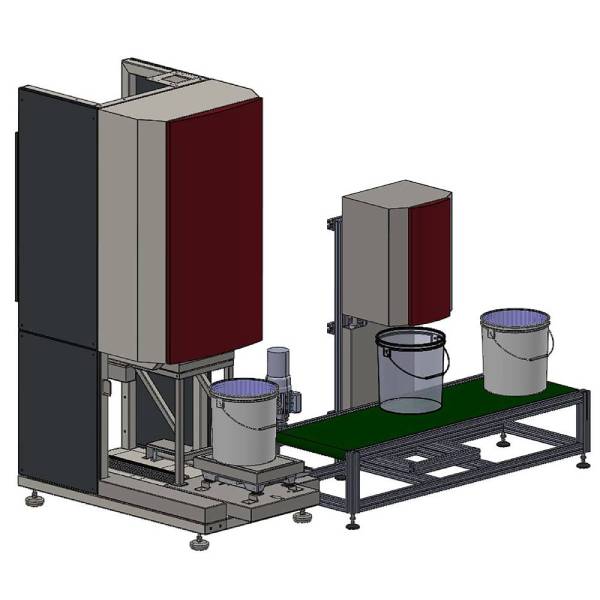

Fully Automatic Bucket Mixer and Roller

Electric motor automatic mixer.
Automatic self-cleaning system
Automatic conveyor
Stainless steel mixer shaft and impeller (AISI 304)
Adjustable mixing speed and time from software

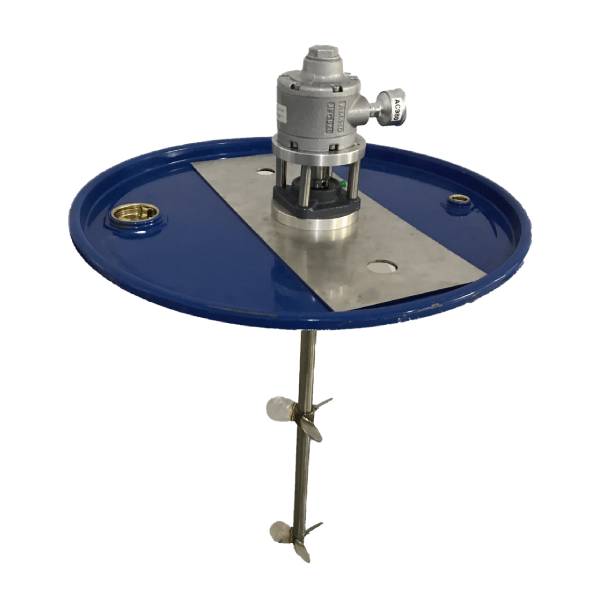

IBC/Barrel Mixer

1.3 kW ex-proof air motor (Ex II GD c T4)
1:5-1:7-1:10 gearbox
0-600rpm, 0-450rpm, 0-300rpm engine speed (7Bar-idle)
Stainless steel mixer shaft and impeller (AISI 304)

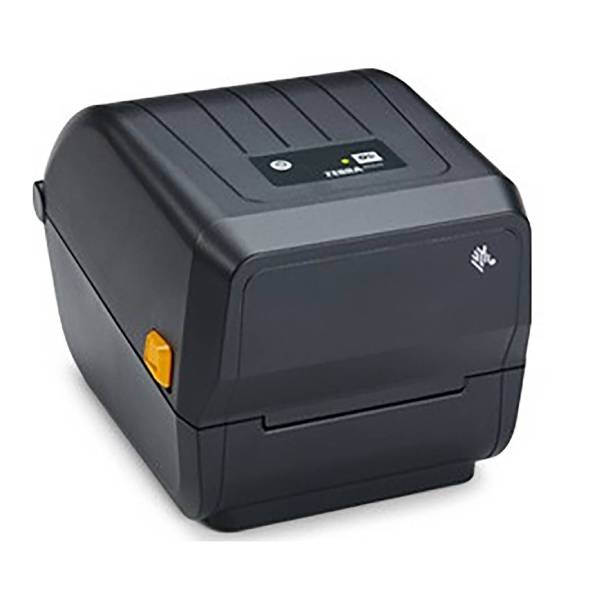

Thermal Label Printer

Used with Dispensing software
Barcode label printing for finished buckets
Thermal transfer printing
104 mm print width

Carmine
