Product Features

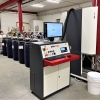

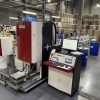

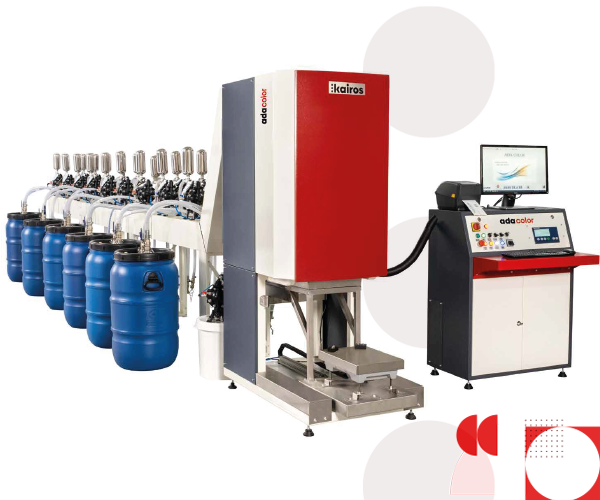

Ada Color Ruby model is a fully automatic dispensing system working with PC support, designed for production into buckets up to 30 Kg, with ±1g accuracy.

Maximum 18 components are available. High-precision multi-stage valves in DN15 size are positioned above the scale.

By using Ada Soft software, the system can produce unlimited color demands with perfect accuracy in a few simple steps.

Recording of all transactions that take place provides the user with post-production traceability with various reports including production history, component history, stock status, production cost.

In addition to the automatic control system, a manual control system is offered as standard.

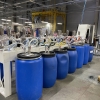

Ada Color Ruby model offers flexible and modular layout possibilities with its compact design according to the existing production area. In the layout, components can be stocked in pails, 200 lt drums or in different types and sizes of containers such as IBCs.

Ada Color Ruby model dispensing system is produced for water and solvent-based products. Our ex-proof solvent-based systems have Atex system certificate.

Catalog

Technicial Specifications

  • Maximum 18 components

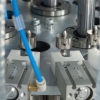

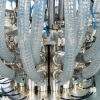

  • 2 stage stainless steel DN 15 dispensing valves
  • Diaphragm pump and stainless steel dampners
  • 30kg ±1g electronic scale with stainless steel scale pan
  • Wet automatic valve cleaning system
  • Manual control buttons
  • Modular body

Operational Features

  • Working viscosity max 1500cPoise
  • Dosing accuracy ±1g
  • Dosing speed less than three minutes for 20 kg and 4 components

Software

  • Formulation database
  • Product Registrations
  • Stock control
  • Return Usage
  • Calibration settings
  • Backup
  • Cost Tracking
  • Reports

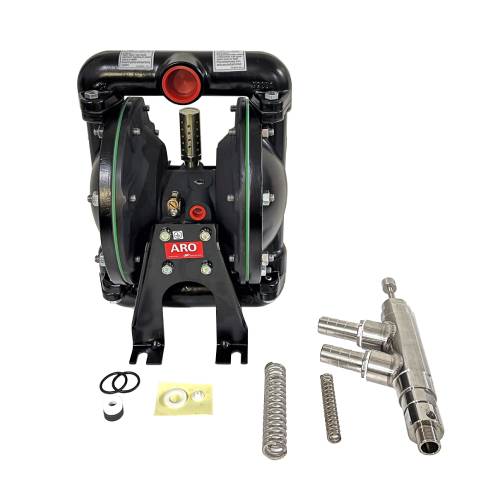

Repair kit

  • Dispensing valve
  • Diaphragm pump
  • Valve repair kit
  • Washing hose

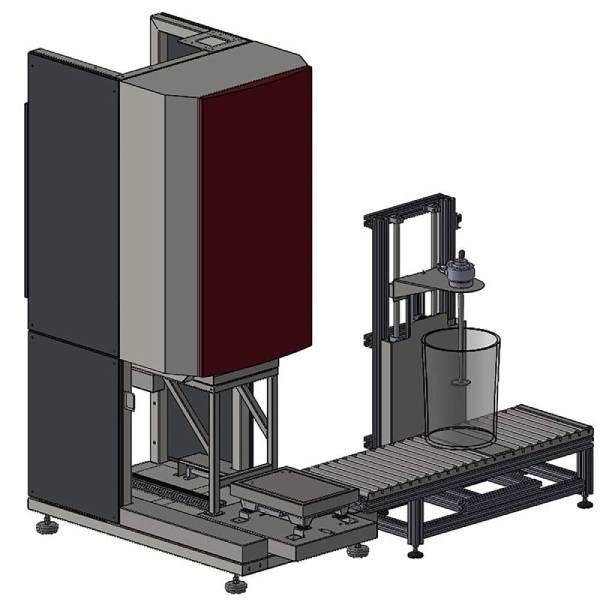

Semi-Automatic Bucket Mixer

  • Semi-automatic mixer with air motor. 0.68 kW
  • Pneumatic up and down movement.
  • Adjustable mixing speed.
  • Stainless steel rollers

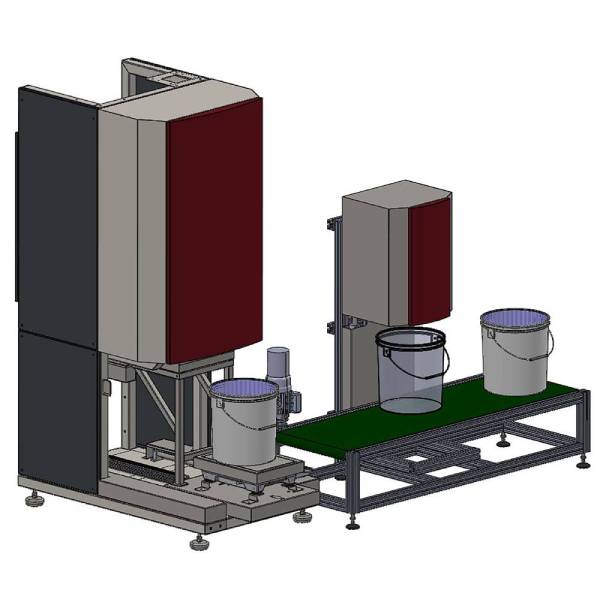

Fully Automatic Bucket Mixer and Roller

  • Electric motor automatic mixer.
  • Automatic self-cleaning system
  • Automatic conveyor
  • Stainless steel mixer shaft and impeller (AISI 304)
  • Adjustable mixing speed and time from software

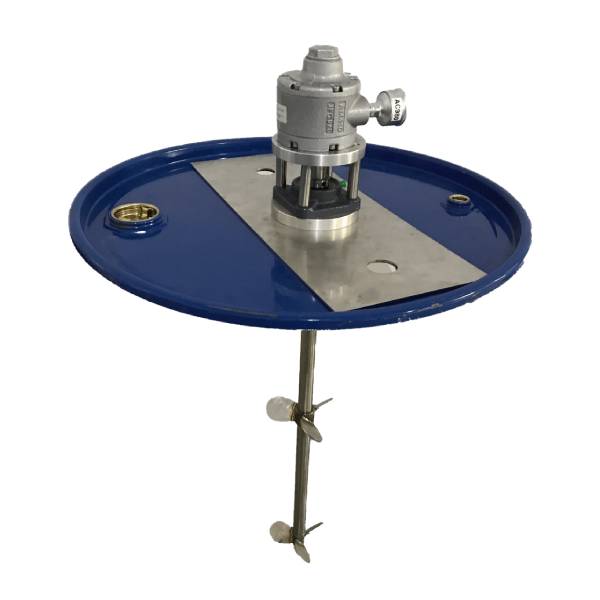

IBC/Barrel Mixer

  • 1.3 kW ex-proof air motor (Ex II GD c T4)
  • 1:5-1:7-1:10 gearbox
  • 0-600rpm, 0-450rpm, 0-300rpm engine speed (7Bar-idle)
  • Stainless steel mixer shaft and impeller (AISI 304)

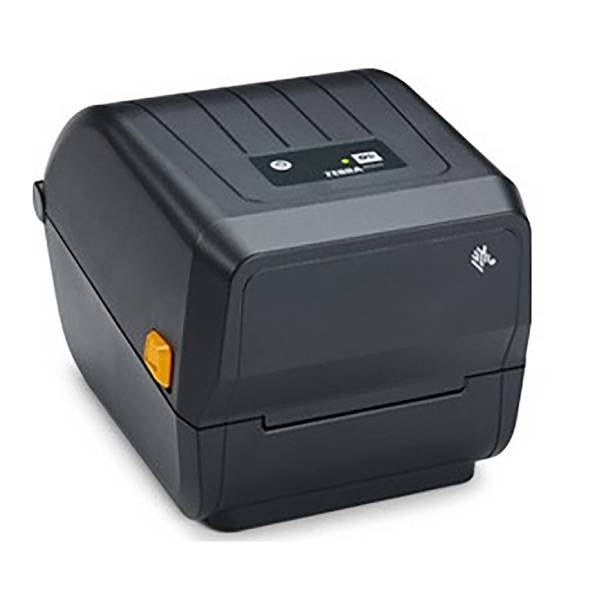

Thermal Label Printer

  • Used with Dispensing software
  • Barcode label printing for finished buckets
  • Thermal transfer printing
  • 104 mm print width

Kairos

Ruby
