Ada Color

Product Features

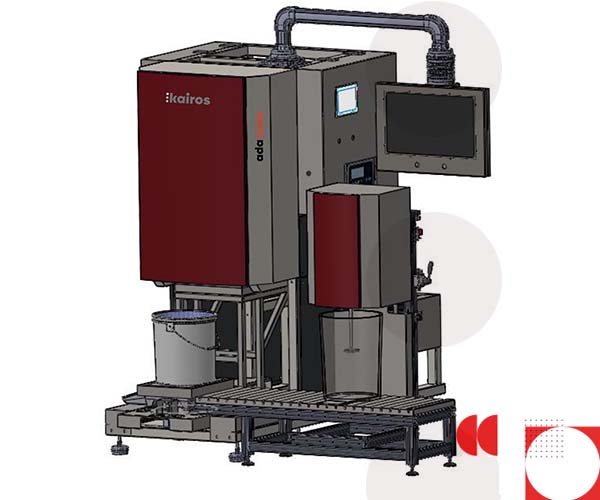

Ada Color Scarlet model is a fully automatic dispensing system working with PC support, designed for production into buckets up to 30 Kg, with ±1g accuracy

Maximum 24 components are available. Two sets of high-precision multi-stage valves are positioned above the scale. The scale can move under the desired valve set automatically.

By using Adasoft software, the system can produce unlimited color demands with perfect accuracy in a few simple steps.

Recording all transactions performed by the user; post-production traceability is provided with a wide variety of reporting, including production history, component history, stock status, and production cost.

Ada Color Scarlet offers flexible and modular placement possibilities with its compact design according to the current production area. In the layout, components can be stocked in pails, 200 lt drums or in different types and sizes of containers such as IBCs.

Ada Color Scarlet model dispensing system is produced for water and solvent-based products. Our ex-proof solvent-based systems have Atex system certificate.

Technicial Specifications

Maximum 24 components
2 stage stainless steel DN15 dispensing valves
Diaphragm pump and stainless steel dampners
30kg ±1g electronic scale and stainless steel scale pan
Wet system automatic valve cleaning
Manual control buttons
Modular body

Operational Features

Working viscosity max 1500cPoise
Dosing accuracy ±1g
Dosing speed less than three minutes for 20 kg and 4 components

Software

Formulation database
Stock control
Return Usage
Backup
Cost
Reports
Automatic Circulation

Options

Repair kit

Dispensing valve

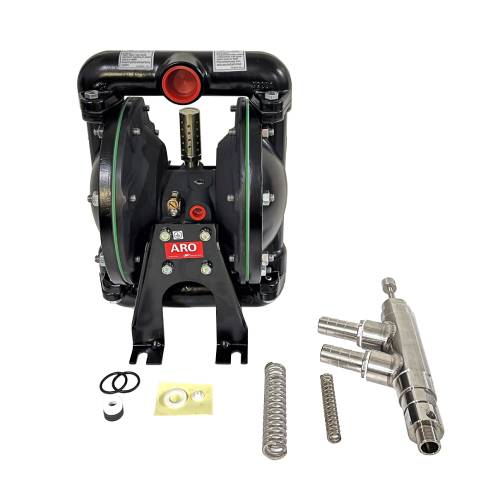

Diaphragm pump
Valve repair kit
Washing hose

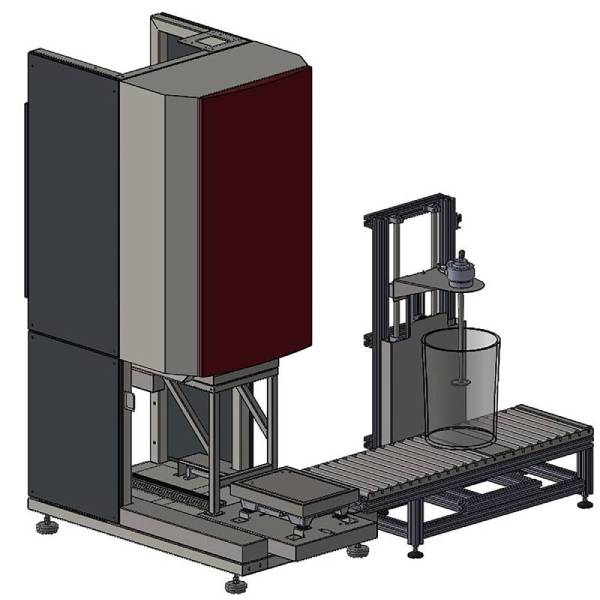

Semi-Automatic Bucket Mixer

Semi-automatic mixer with air motor. 0.68 kW
Pneumatic up and down movement.
Adjustable mixing speed.
Stainless steel rollers

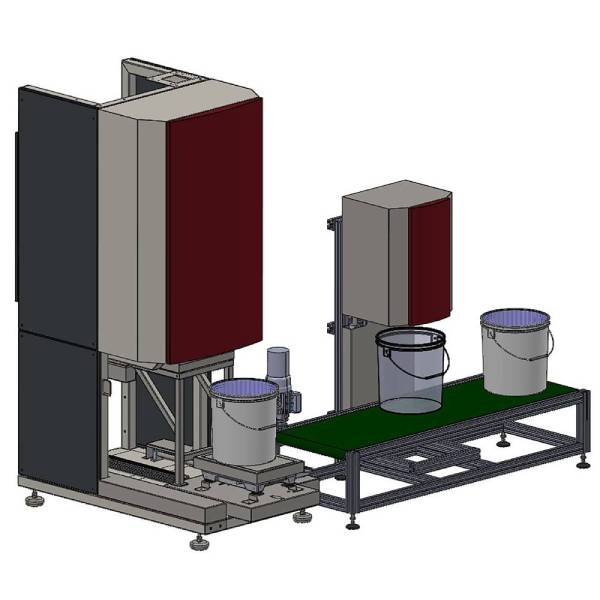

Fully Automatic Bucket Mixer and Roller

Electric motor automatic mixer.
Automatic self-cleaning system
Automatic conveyor
Stainless steel mixer shaft and impeller (AISI 304)
Adjustable mixing speed and time from software

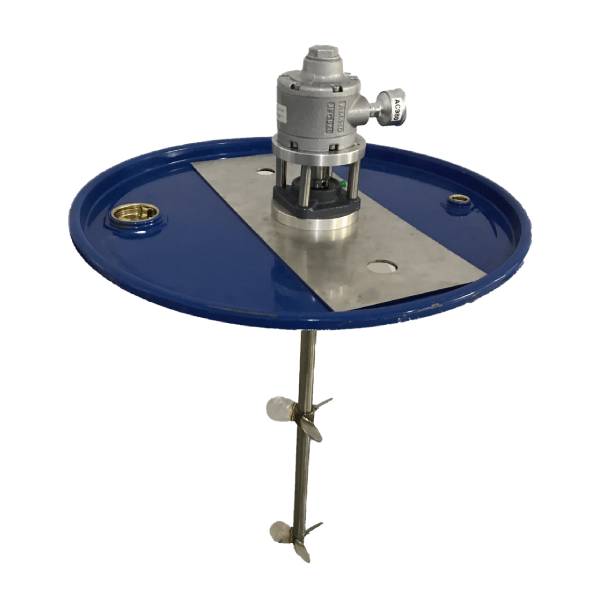

IBC/Barrel Mixer

1.3 kW ex-proof air motor (Ex II GD c T4)
1:5-1:7-1:10 gearbox
0-600rpm, 0-450rpm, 0-300rpm engine speed (7Bar-idle)
Stainless steel mixer shaft and impeller (AISI 304)

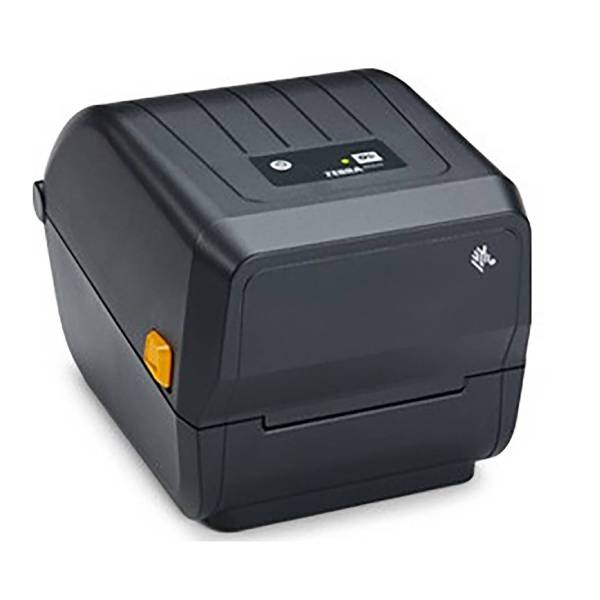

Thermal Label Printer

Used with Dispensing software
Barcode label printing for finished buckets
Thermal transfer printing
104 mm print width

Scarlet
