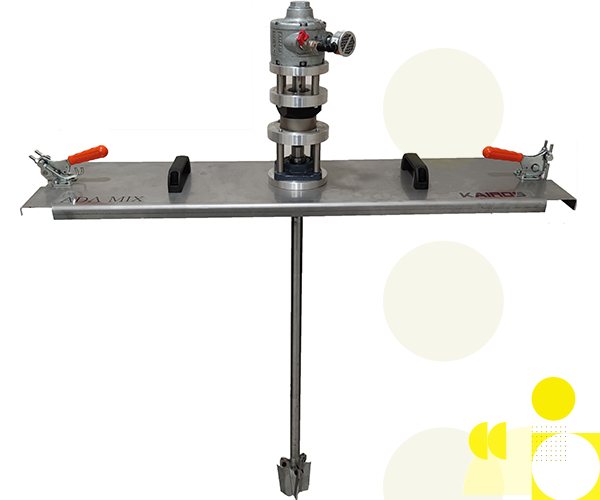

AK1000 IBC Mixer

  1. Home
  2. Ürünler
  3. Ada Mix
  4. AK1000 IBC

Product Features

Ada mix IBC mixers are designed
and manufactured for mixing,
homogenization and coloring processes of products in IBCs.

Catalog

Technicial Specifications

  • 1.3 kW ex-proof air motor (Ex II GD c T4)
  • Gear reducer 1:5, 1:7, 1:10
  • Max torque: 31, 44, 63 Nm (7 Bar)
  • Max. rpm: 600, 430, 300 rpm
  • Stepless speed regulation
  • Stainless steel mixer shaft and impeller (AISI 304)
  • Product weight 14 kg

Operational Features

  • Working viscosity max. 2500 cPoise
  • Suitable for IBCs min. 50 mm cap diameter

Propeller Options

  • Blade
  • Marine-type

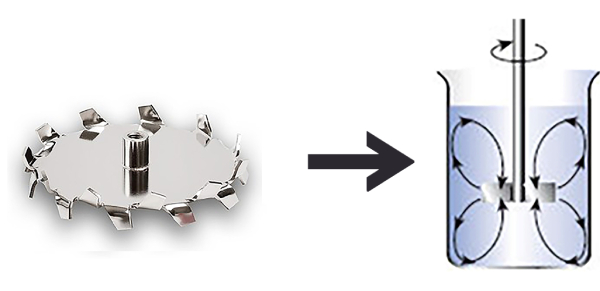

  • Toothed Disc

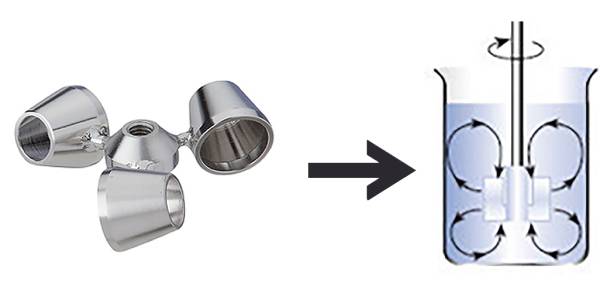

  • Cone

Contact Us For Offer

to Contact Us : +90 232 433 03 44
