Ada Fill
Product Features
Our ADA FILL model is a semi-automatic filling system designed for filling buckets up to 30 lt or drums up to 200 lt.
Parameters such as target filling amount and slow flow weight can be adjusted via the filling indicator.
10 different filling parameters can be saved in memory for different products. The height of the filling head can be adjusted for different sized cans.
Customer-specific solutions are provided according to your production area and needs.
There is the option of filling from the tank, IBC or mobile vessels.
ADA FILL filling system is produced on the basis of water and solvent. Our solvent-based system has Atex zone 1 system certificate.
Technical Specifications

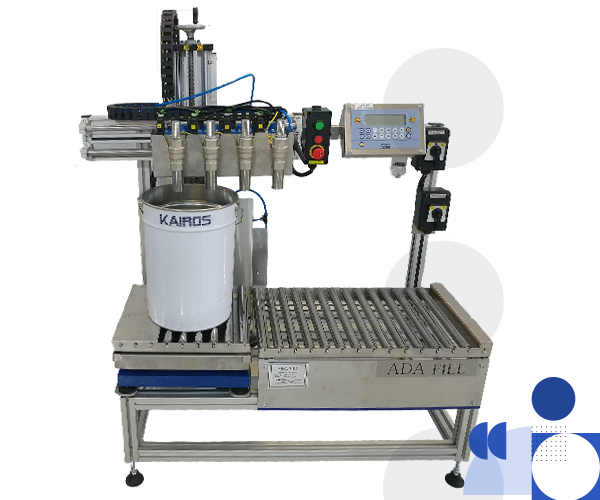

- System option up to 4 filling heads
- Diaphragm pump and stainless steel dampners
- 60kg ±10g, 300kg ±50g electronic scale and stainless steel scale pan
- Stainless steel rollers for filled cans
- Modular body
Operational Features
- Working viscosity maximum 2000 cPoise
Filling speed;
- 60kg ±10g 80kg/min
- 300kg ±50g 120kg/min
Options

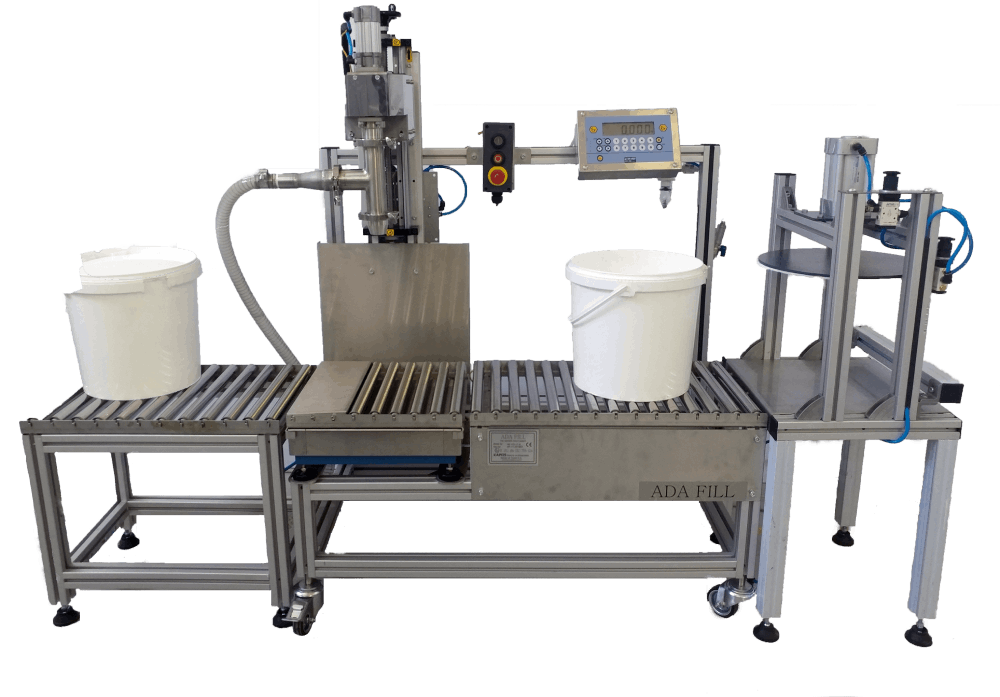

Lid Closing Station
- Bucket lid closing unit for different sizes

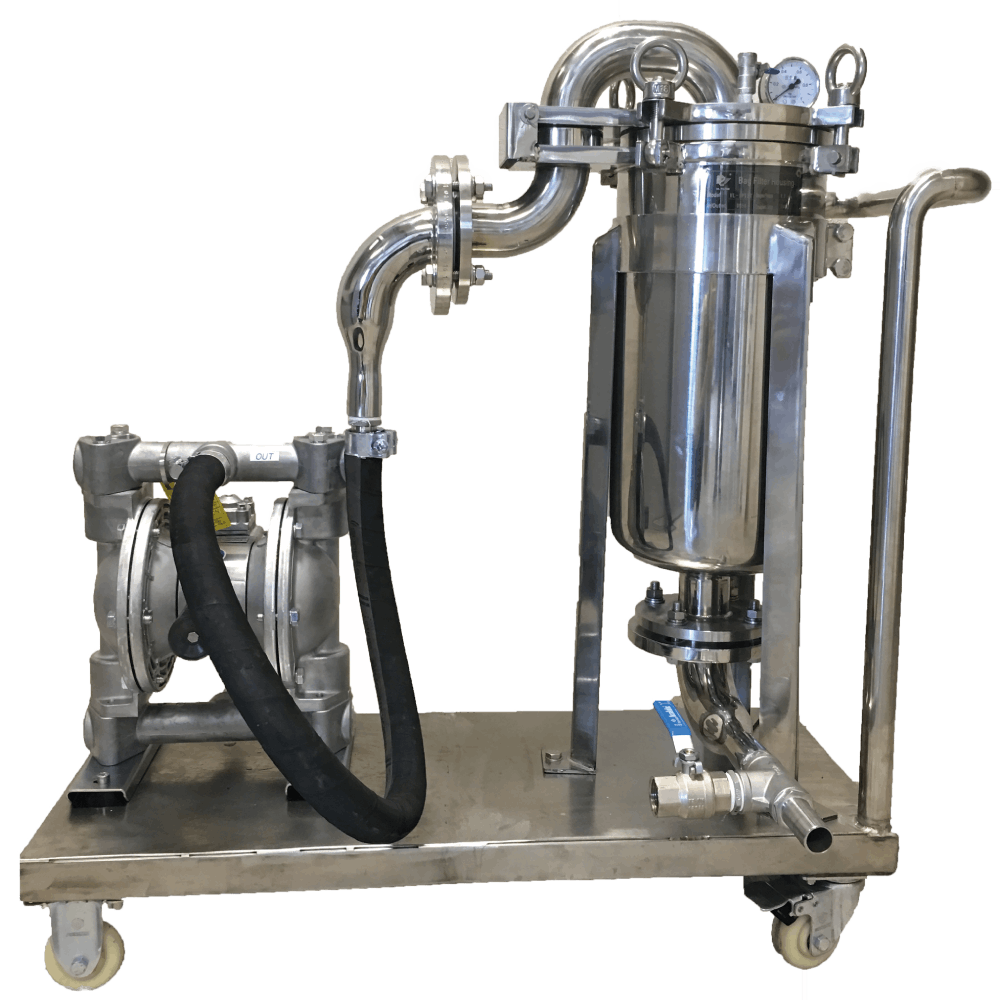

Bag Type Filters
- Stainless steel filter body (AISI 304)
- Top product inlet for easy bag change and high filtration performance
- 0.50 m²-0.25m² filter surface area
- 2" product inlet
